Main Performance & features.

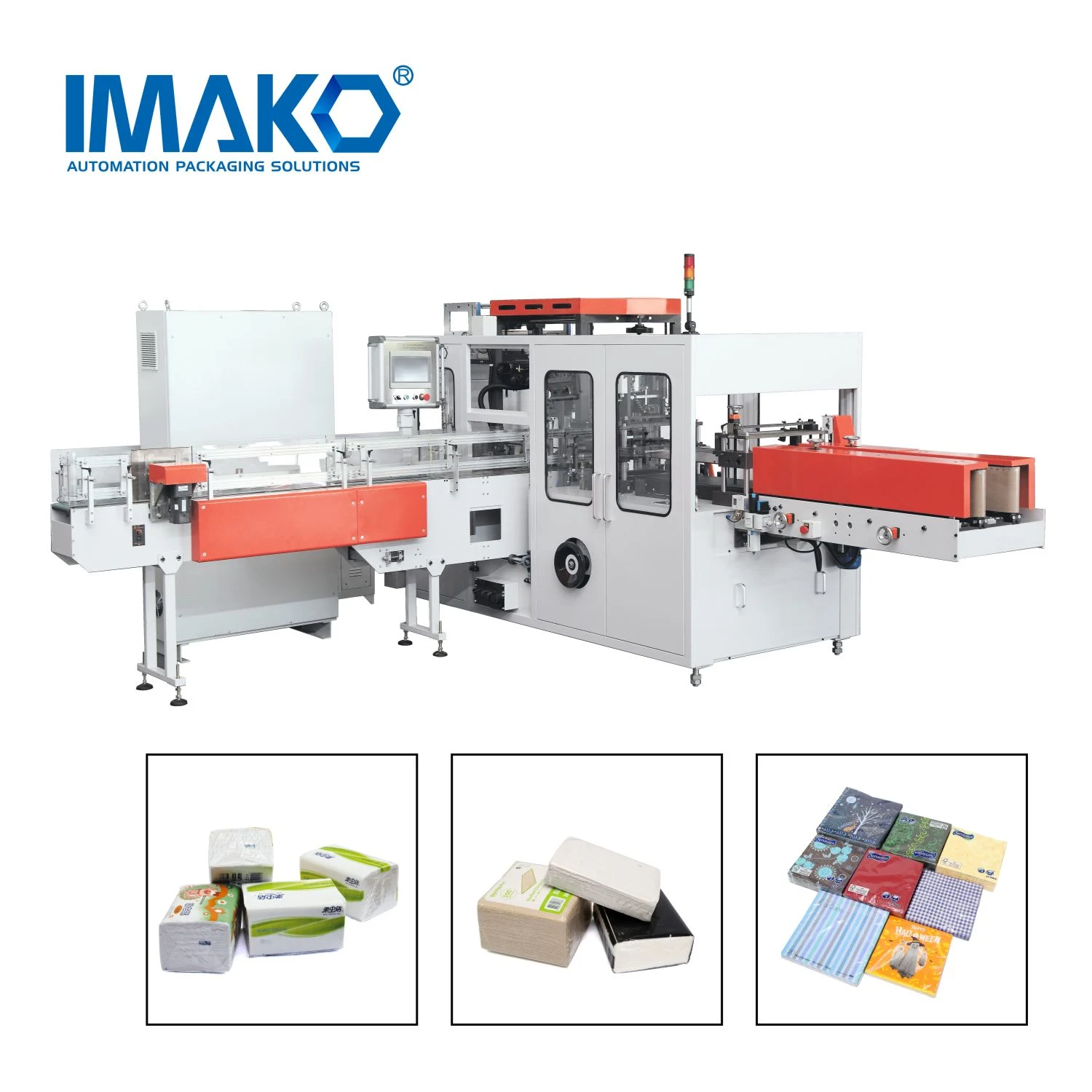

- TP-T200S Single napkin fully auto wrapping machine is suitable for N fold and single fold soft tissue, napkin fully automatic wrapping.
- Paper alignment feeding are utilized converter+servo together driving control method, pack film punching, pulling, cutting, feeding in the bag,center sending and other action are adopt servo driving control method, it has complete running function configuration, high service efficiency, simple operation, wide range specification, quick changed mould, convenient maintenance, low cost when using and other advantage.
- Configuration 10 solo function: Paper forming, avoiding blocking, electric jog, positional correcting, knife repeat usage, speed auto adjusting, paper length beyond error protection, high temp.resistance protection, many section style floating end seal.
- Stable production speed 15-60 packs/min
Product tech. Parameter and basic features:
| Basic Features | Description | Note |
| Paper pack range | Film pack tissue, hand towel, napkin | |
| Paper trimming & sending | ASF fully intelligent conveyor | 5 Section intelligentized soft sending |
| Design production speed | ≤ 60 pack/min | relevant to the pack size |
| Stable production speed | ≤ 55 pack/min | relevant to the pack size |
| Film changed time | ≤2 min | relevant to the operation familiar degree |
| Paper Length range | 130 mm- 300 mm | Finished product size, over range can be customized |
| Paper height range | 15 mm- 80 mm | |
| Paper width range | 130 mm- 250 mm | |
| Special use parts for specification change | 3 sets | standard equip, detail pack size by buyer |
| Device size | Length 5180 mm Width 4670 mm Height 2030 mm | |
| Weight | ≤ 3500 KG | |
| Pack material | Two surface heat seal CPP film | |
| Film thickness | 0.04mm-0.05mm | |
| Film roll max. diameter | 400mm | |
| Film roll core diameter | 76mm | Follow international common standard |
| Film roll max. width | 450mm | |
| Compressed air | Air pressure≥ 5MPA | Air compression provide by the buyer |
| Cabinet power | 380V/50HZ | Follow Chinese electricity standard |
| Total Power | 14 KW | Main motor, servo motor, speed adjusting motor total power |
| Variation range of adaptive voltage | +/-10% | follow national standard |
| I/O Input | 24VDC | electric system control circuit input |
| I/O Output | 24VDC | electric system control circuit output |
| Motion Control Mechanism | 3 shaft servo positioning control | Electric Cam running curve |
| General Transmission Mechanism | Electric Cam running | |
| Device Color and Surface Finishing | international Grey,Static Spraying & Baking Painting | International color card no. RAL7032 |
| Pack style | 3D pack | Pack film mouth connect together, two ends sealing neat |
Device power info.
| Total power(KW) | 18.33 |
| Paper sending servo power(KW) | 0.4 |
| Open servo motor power(KW) | 0.4 |
| center servo motor power(KW) | 1.5 |
| Bag pushing servo motor power(KW) | 1.5 |
| Fronted Moving servo motor power (KW) | 1.5 |
| Bag press servo motor power(KW) | 1.5 |
| Down insert film servo motor power(KW) | 1.0 |
| Moving guide servo motor power(KW) | 1.5 |
| Iron swing lifting servo motor power(KW) | 1.5 |
| Iron swing servo motor power(KW) | 0.2 |
| Unreel motor power(KW) | 0.37 |
| Position adjustment motor power(KW) | 0.04 |
| Output motor power(KW) | 1.5 |
| Paper trimming motor power(KW) | 0.2 |
| Feeding motor power(KW) | 0.2 |
| Spanking motor power(KW) | 0.06 |
| Heating tube total power(KW) | 4.6 |
| Other electric total power(KW) | 0.36 |
